Galvani Series 600W-615W
TOPCon Cell Technology
Advanced efficiency with next-generation TOPCon solar cell technology.
16 Busbar Technolgy
Higher module efficiency with 16 Busbar solar cell technology
Potential Induced Degradation Resistant
Panels maintain their high performance for a long time
Higher output power
Higher conversion efficiency, more power production per unit area
Better Low Temperature Coefficient
Less affected by the loss of efficiency caused bu high temperature
Max. System Voltage
Contributes to your budget by lowering your installation costs
Power Tolerance
Positive power tolerance 0-+4.99W
Extra Low Light Performance
Produces even when the light is low
Salt Corrosion Resistant
Salt resistance according to IEC 61701:2020 standards
Ammonia Corrosion Resistant
Corrosion resistance according to IEC 62716:2013 standards
Linear Performance Warranty
12 years product warrantly 30 years linear power warrantly
Certificates
Mechanical Characteristcs
| Cell Type | M10L 16BB TOPCon Solar Cell |
| No.of Cells | 182,2x91,8mm (144 pcs) |
| Dimensions | 2297x1134x35mm |
| Weight | 28 kg (61,73 Ibs) |
| Glass | 3.2mm (0.13 inch) Anti Reflective Coating |
| Frame | Silver Anodized Aluminum Alloy |
| Junction Box | IP 68 Rated/ Original MC4 EVO-2/QC4.10 PLUS |
| Output Cables | 4mm² Solar Cable; 400mm(+), 300(-)mm |
- Cable lengths can be produced as 1500mm(+) and 1300mm(-) according to customer requests.

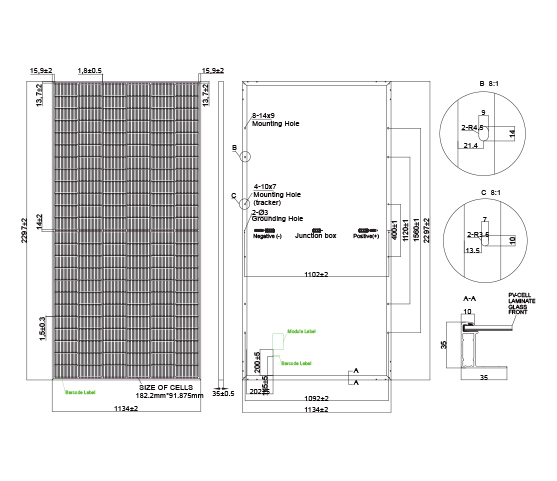

Technical Drawing
Packaging Configuration
| Module Size (mm) | Box-Truck | Box-40HQ |
|---|---|---|
| 2297x1134x35 | 704 pcs./22 pallets | 640 pcs./20 pallets |
- *Set Solar Galvani Series M10L modules can be packed with box.
Absolute Maximum Rating
| Mechanic Load | 5400 Pa (Snow)/ 2400 Pa (Wind) |
| Maximum Series Fuse Rating | 30A |
| Application Safety Class | II |
| Fire Rating (IEC61730) | C |
| Module Fire Performance (UL1703) | Type1 |

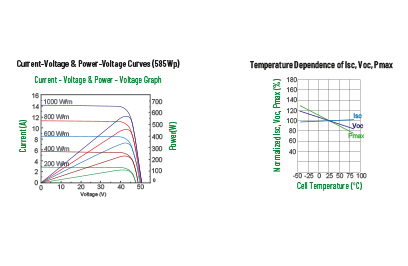

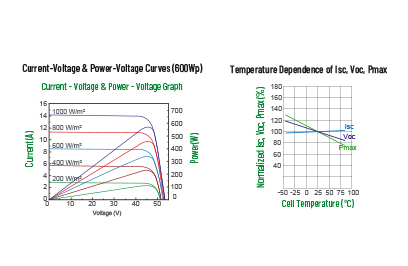

Electrical Characteristics
Specifications
| Model | SET72-600 | SET72-605 | SET72-610 | SET72-615 |
|---|---|---|---|---|
| STC-NOCT | STC-NOCT | STC-NOCT | STC-NOCT | |
| Rated Power (Pmpp) | 600 Wp - 463 Wp | 605 Wp - 467 Wp | 610 Wp - 470 Wp | 615 Wp - 474 Wp |
| Rated Voltage (Vmpp) | 44,80 V - 45,56 V | 44,95 V - 42,70 V | 45,06 V - 42,81 V | 45,15 V - 42,89 V |
| Rated Current (Impp) | 13,47 A - 10,87 A | 13,54 A - 10,93 A | 13,62 A - 10,98 A | 13,69 A - 11,06 A |
| Open Circuit Voltage (Voc) | 51,99 V - 49,39 V | 52,14 V - 49,53 V | 52,27 V - 49,66 V | 52,39 V - 49,77 V |
| Short Circuit Current (Isc) | 14,14 A - 11,41 A | 14,15 A - 11,42 A | 14,17 A - 11,42 A | 14,20 A - 11,46 A |
| Module Efficiency (%) | 23,03 | 23,23 | 23,42 | 23,62 |
| Power Tolerance | 0~+4.99W | |||
| Maximum System Voltage | 1500V DC (IEC) | |||
| Maximum Series Fuse Rating | 30A | |||
| Operating Temperature | -40°C to + 85°C | |||
| NOCT (Nominal Operating Cell Temperature) | 45°C ± 2°C | |||
| Voltage Temperature Coefficient (β) | -0.25%/ °C | |||
| Current Temperature Coefficient (α) | +0.045%/ °C | |||
| Power Temperature Coefficient ( γ) | -0.30%/°C |
- *STC 1000W/m²,CellTemperature 25°C,AM=1.5
- *NOCT 800 W/m², Ambient Temperature 20°C, AM=1.5 Wind Speed=1m/s
